BTP-U80II je POS pisač vrlo visoke kvalitete prikladan za upotrebu u ugostiteljstvu, zdravstvu i maloprodaji.

Glavne značajke:
• 3 godine jamstva
• Nizak nivo buke i velika brzina ispisa do 230 mm/s
• Jednostavno umetanje papira kao i korištenje i održavanje
• Podržava rad s više širina papira
• Dostupna sučelja: RS232 serijski, USB i Ethernet
• ESC/POS kompatibilan
• Funkcija štednje papira (Podržava ispis na označeni papir i beskonačni papir)
• Dostupan ispis u dvije varijante (Black & White or greyscale (percentages of black))
• Niska potrošnja energije (Min. manje od 1W)
• Unutarnji zujalica (podesiva glasnoća)
• Montaža na zid (nije potreban nosač)

Tehnički podaci:

Način ispisa: Izravni termalni ispis
Rezolucija: 180 x 180DPI
Brzina ispisa: Max. 200 mm/s
Širina ispisa: Max. 72 mm
Sučelje Standardno sučelje: RS232 serijski, USB, Ethernet
Kontrola ladice s novcem: 1 ladica s novcem
Crtični kodovi: 1D:UPC-A, UPC-E, JAN8 (EAN8), CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Fontovi: Font A 12 x 24, Font B 9 x 17, Kanji 24 x 2
Skup znakova: 95 alfanumeričkih, 13 vrsta međunarodnih znakova, 128x56 grafika (uključujući korisnički definiranu stranicu) tradicionalni/pojednostavljeni kineski, tajlandski, japanski, korejski (izborno)
Izmjena znakova: Rotacija (0°, 90°, 180°, 270°) povećanje (1-6X)
Flash kapacitet: 2MB
Flash LOGO Maks.: 512Kb
Međuspremnik podataka: 64 Kb, 4 Kb, 45 bajtova
Vrsta papira: Beskonačni ispis, označeni papir
Širina papira: 57,5/69,5/76/80/82,5 mm
Debljina papira: 0,06-0,08mm
Rola papira: do maxsimalno 83 mm (57,5 / 69,5 / 76 / 80 / 82,5)
Papirni rez: Puni rez, Djelomični rez
Ulaz: 100~24V AV, 50~60Hz
Izlaz: 24V ± 5%DC, 1.5A
Radni uvjeti: 5°C do 45°C, 20% do 90%RH (40°C)
Uvjeti skladištenja: -40°C do 60°C, 20% do 93%RH (40°C)
Životni vijek ispisne glave: 150 km
Životni vijek rezača: 1.500.000 rezova (puni rez, debljina papira: 0,065 mm)
Dimenzije: 145(š) x 195(D) x 141(V)
Težina: 1,45Kg
Standardi: CE, CB, FCC, UL
Jamstvo: 36 mjeseci

RONGTA RP326 is an 80 mm thermal POS receipt printer delivering print speeds of up to 250 mm/s. Integrated USB, RS-232 and Ethernet interfaces provide compatibility with different POS systems, while desktop and wall-mounted installation options simplify placement in retail stores, restaurants, kitchens and reception areas. Its automatic cutter, easy paper loading and ESC/POS support provide fast and reliable everyday operation.

Specifications:

Printing technology: direct thermal
Print colour: black
Resolution: 203 dpi
Printing speed: up to 250 mm/s
Effective printing width: 72 or 48 mm
Printing density: 576 or 384 dots per line
Characters per line:
Font A: 48
Font B: 64
Chinese characters: 24
Font A: 12 × 24 dots
Font B: 9 × 17 dots
Paper width: 79.5 ± 0.5 mm
Maximum paper roll diameter: 80 mm
Easy paper loading
Automatic cutter: partial cut
Automatic cutter life: up to 1.5 million cuts
Supported barcodes: UPC-A, UPC-E, EAN-13, EAN-8, Code 39, I25, Codabar, Code 128, Code 93, Code 11 and MSI
Supported 2D codes: QR Code and PDF417
Emulations: ESC/POS and OPOS
Interfaces: USB, RS-232 serial and Ethernet LAN
Cash drawer output: DC 24 V / 1 A
Supported operating systems: Windows, Linux and macOS
Installation: desktop or wall-mounted
Power supply: DC 24 V / 2.5 A
Dimensions: 140 × 191 × 143 mm
Housing colour: black
Operating temperature: 0–45°C
Storage temperature: –10 to 60°C
Operating humidity: 20–90%
Certifications and compliance: CE, FCC ID, RoHS, BIS, REACH and 3C

Package contents:

RONGTA RP326 thermal printer
Power adapter
EU power cable
Starter thermal paper roll

Warranty: 12-month warranty
EAN: 3850309229506
PN: RP326

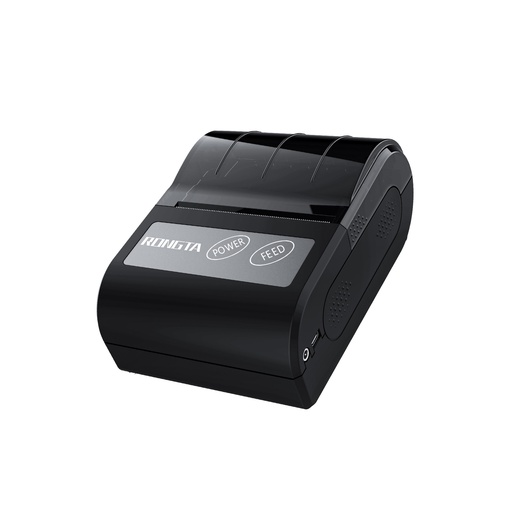

RONGTA RPP02N is a compact portable thermal printer for printing receipts and confirmations on 58 mm-class paper rolls. Its 203 dpi resolution and printing speed of up to 80 mm/s provide clear output during mobile operation, while Bluetooth connectivity simplifies use with mobile devices. A built-in 1,600 mAh rechargeable lithium-ion battery, easy paper loading and compact housing make it suitable for mobile sales, delivery services and field operations.

Specifications:

Device type: portable thermal receipt printer
Printing technology: direct thermal line printing
Resolution: 203 dpi
Printing speed: 50–80 mm/s
Paper width: 56 mm
Effective printing width: 48 mm
Printing density: 384 dots per line
Paper thickness: 60–80 μm
Maximum paper roll diameter: 30.5 mm
Easy paper loading
Paper mark detection
Paper-out sensor with visual and audible warning
Support for printing multiple languages
Command set: ESC/POS
Connectivity of this version: Bluetooth
Other interfaces depend on the model variant: USB, RS-232 or infrared
Battery: rechargeable lithium-ion, 7.4 V / 1,600 mAh
Print head life: up to 50 km of printing
Dimensions: 102 × 108 × 50 mm
Weight: 340 g according to the official technical table
Operating temperature: –10 to 50°C
Operating humidity: 20–85%
Storage temperature: –20 to 70°C
Storage humidity: 5–95%
Colour: black


EAN: 3830056881394
PN: RPP02N

The SNBC BTP-S80 is a compact direct thermal POS printer designed for fast receipt printing in retail, hospitality and other point-of-sale environments. Its print speed of up to 250 mm/s, automatic cutter and selectable top or front paper output provide flexible installation at different checkout locations. The offered configuration features USB, RS-232 serial and Ethernet connectivity for integration with POS systems and local networks.

Specifications:

Printing method: direct thermal printing
Resolution: 203 × 203 dpi or 203 × 180 dpi, depending on configuration
Maximum print speed: 250 mm/s
Maximum print width: 80 mm
Paper widths: 57.5 mm, 80 mm or 82.5 mm
Paper thickness: 0.06–0.10 mm
Maximum roll diameter: 83 mm
Paper type: continuous thermal paper or marked paper
Paper output: top or front output
Paper cutting: full cut, partial cut or manual tear-off
Memory: 4 MB Flash and 2 MB SDRAM
Command system: ESC/POS compatible

Interfaces of the offered configuration:

1 × USB 2.0
1 × RS-232 serial port
1 × 10/100BASE-T Ethernet port
Cash drawer control for one or two cash drawers

Supported one-dimensional barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF and Codabar
Supported two-dimensional codes: QR, PDF417, MaxiCode and GS1 DataBar
Drivers: Windows, macOS and Linux
Sensors: paper end, cover opening, cutter position, printhead overheating, printhead voltage and black mark
Power input: 100–240 V AC, 50/60 Hz
Power output: 24 V DC, 2 A
Printhead life: 150 km
Cutter life: 2,000,000 cuts
Dimensions: 127 × 127 × 134 mm
Weight: approximately 1.1 kg
Colour: black
Certifications: CE and other certifications listed for the BTP-S80 model

Internal reference: 10POS953
Model: BTP-S80
