The Fujitsu DL3100 is a compact and reliable 24-pin dot matrix printer designed for forms, invoices, delivery notes and multipart documents. It provides print speeds of up to 450 characters per second and can produce an original with up to six additional copies. This version features USB 2.0 and a 25-pin RS-232C serial interface.

Specifications

Printer type: serial dot matrix printer
Print technology: 24-pin impact dot matrix
Printing method: bi-directional printing with logical seeking
Print columns: 80 at 10 cpi
High Draft speed: up to 450 characters/s at 10 cpi
Draft speed: up to 300 characters/s at 10 cpi
Letter Quality speed: up to 120 characters/s at 10 cpi
Maximum resolution: 360 × 360 dpi
Multipart printing: original plus up to 6 carbonless copies
Maximum paper thickness: 0.52 mm
Paper width: 95–267 mm
Interfaces: USB 2.0 Type-B and RS-232C
Serial connector: 25-pin
Emulations: Epson ESC/P2 and IBM ProPrinter
Input buffer: up to 256 KB
Printhead life: 400 million strokes per wire
Ribbon capacity: approximately 7 million characters
Operating power consumption: approximately 34 W
Standby power consumption: up to 1.4 W
Noise level: approximately 54 dBA / 52 dBA in low-noise mode
Dimensions: 369 × 283 × 146 mm
Weight: approximately 5.5 kg

Consumables

Ribbon: Fujitsu DL3100 Ribbon Cartridge
Ribbon PN: KA02100-0201

Package contents

Fujitsu DL3100 printer
Ribbon cartridge
Single-sheet feeder
Power cable
User documentation

PN: KA02100-B611

Warranty: 12 months

The Fujitsu DL3100 is a compact and reliable 24-pin dot matrix printer designed for forms, invoices, delivery notes and multipart documents. It provides print speeds of up to 450 characters per second and can produce an original with up to six additional copies. This version features USB 2.0 and Ethernet LAN connectivity for standalone or network use.

Specifications

Printer type: serial dot matrix printer
Print technology: 24-pin impact dot matrix
Printing method: bi-directional printing with logical seeking
Print columns: 80 at 10 cpi
High Draft speed: up to 450 characters/s at 10 cpi
Draft speed: up to 300 characters/s at 10 cpi
Letter Quality speed: up to 120 characters/s at 10 cpi
Maximum resolution: 360 × 360 dpi
Multipart printing: original plus up to 6 carbonless copies
Maximum paper thickness: 0.52 mm
Paper width: 95–267 mm
Interfaces: USB 2.0 Type-B and Ethernet LAN
Network connection: 10BASE-T / 100BASE-TX
Network protocol: TCP/IP
Emulations: Epson ESC/P2 and IBM ProPrinter
Input buffer: up to 256 KB
Printhead life: 400 million strokes per wire
Ribbon capacity: approximately 7 million characters
Operating power consumption: approximately 34 W
Standby power consumption: up to 1.4 W
Noise level: approximately 54 dBA / 52 dBA in low-noise mode
Dimensions: 369 × 283 × 146 mm
Weight: approximately 5.5 kg

Consumables

Ribbon: Fujitsu DL3100 Ribbon Cartridge
Ribbon PN: KA02100-0201

Package contents

Fujitsu DL3100 printer
Ribbon cartridge
Single-sheet feeder
Power cable
User documentation

PN: KA02100-B711

Warranty: 12 months

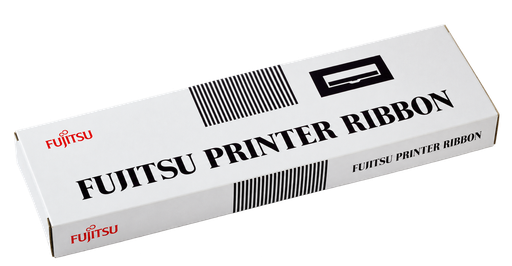

Fujitsu KA02100-0201 is an original inked ribbon cartridge designed for Fujitsu DL3100 serial dot-matrix printers. Its capacity of approximately seven million characters supports long-lasting printing of business forms, receipts and other multipart documents. The original cartridge ensures correct ribbon feeding and straightforward replacement without manual rewinding.

Specifications:

Product type: inked ribbon cartridge
Printing technology: serial dot-matrix
Print colour: black
Yield: up to approximately 7 million characters
Compatibility: Fujitsu DL3100
Type: original Fujitsu consumable

Package contents:

1 × Fujitsu DL3100 ribbon cartridge


PN: KA02100-0201

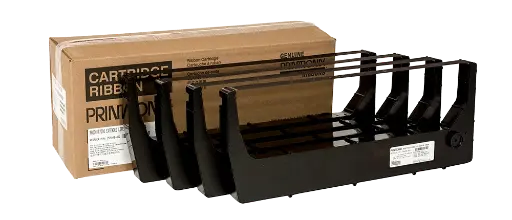

Genuine Printronix extended-life ribbon cartridges designed for P7000 and P8000 Series line matrix printers. Each cartridge provides a yield of up to 30,000 pages, reducing replacement frequency and the operating cost per page. The self-contained cartridge design enables easier, cleaner and faster replacement compared with traditional spool ribbons.

Product type: genuine printer ribbon cartridge
Version: Extended Life
Printer technology: line matrix printing
Yield per cartridge: up to 30,000 pages
Total pack yield: up to 120,000 pages
Number of cartridges: 4
Compatible printer series: Printronix P7000 and P8000
Supported printer speeds: 1,000, 1,500 and 2,000 lines per minute
PN: 255048-401
EAN: 0746099009714

Compatible models:

Printronix P7010
Printronix P7015
Printronix P7215
Printronix P7220
Printronix P8010
Printronix P8210
Printronix P8215
Printronix P8220

Note: This ribbon is not compatible with 500 LPM P7000/P8000 printer models. These printers require the appropriate standard-life ribbon.

Package contents:

4 × Printronix 255048-401 Extended Life Ribbon Cartridges
